Thursday 28 April 2011

Catch caught !


 Many thanks for all your suggestions & rummaging - I think I've found a couple of replacement catches.

To our (well, mine at least) British eyes, this is an unusual design but Stateside it is obviously more common & whilst I can't find an exact Yale version

I have found this IVES version in aluminium (or nickel-plated aluminium)
IVES 066 with mortice striker plate from American Locksets for $3.78


Thanks again for all your help. Chris

Tuesday 26 April 2011

Help - there's only one catch !

Help !  I'm after a duplicate screen door catch

They mount on the main door and held the screen door shut & my Flying Cloud only came with one rusty one surviving. Its cleaned-up nicely but would like a friend !

Its a cast iron twist catch made by Yale.      Base measures 2" x 1"

Nice aysmmetric look to it & I believe it pre-dates the bolts used on later 50s trailers

I've tried googling & eBaying the Yale ref number but with no luck -
so I thought I'd throw it out to all you Airstream experts out there !

I'd love to find one if at all possible.
Thanks and Happy Easter to you all - Chris

Saturday 23 April 2011

Hehr Standard Window Restoration

Time to start on the Hehr Standard Windows

 Having taken out all the windows & brought them home to Devon

 with a little help from Arthur (our 18mth old Lab)

 it was time to make a start rejuvenating them

in my rather cluttered workshop

Luckily window restoration doesn't take up that much space

 just a bench... and quite a bit of time !

 Although they're broadly identical, I still tend to number every window as they come out (and have etched it onto the inside of the frame)

Dismantling isn't as easy

as it should be

 The big problem is the steel screws & bolts which have accelerated corrosion having spent 55yrs touching the alloy of the windows.

Surprisingly with some WD40 and brute force, a few come free

... and there's only one option for those that don't ! Its a bit tricky but a wafer thin cutting disc & steady hands see them off

 Once they're out the rust staining cleans off & the simple window construction is pretty clear

A few Airstream souvenirs I won't be keeping !

So the dismantled window is 7 pieces: The pressed & folded main frame, 4 x glass securing strips, a central strut and the Hehr catch.

 I know we resist any sort of abrasive other than Nuvite on the trailer skin but the windows are a bit different (& I'm not even sure they are Alclad). I found the finest grade of Scotchbrite works really well for cleaning off the oxidation & the rust staining.

Voila - its more mirror sheen than mirror shine but I'm fine with that for the inside parts of the window

 I tried some small felt heads for my drill

 They worked pretty well but left quite a few swirls, so I went back to hand polishing the outside face

 Ready to reassemble

 First wash your hands - the new Hehr Glass Seal  is very good at taking all that aluminium dust and grime off your hands !

It probably the easiest job - cut a square end and push it onto the edge all the way round.

 I haven't glued it but could always run bead of glue in at a later date.

Another square cut...

... and the job's done.

I avoid silicone where possible
but here a small bead and dots in the corners helps hold the glass in firmly


 Glass in - now to fix

4mm x 8mm pop rivets do the job nicely

and pull it all together tightly

One side done

 Looks rather better ?!

 In the corners I used small washers on the inside as the holes were rather larger than the 4mm rivets

 Neater than the rusty bolts

 Done

 It took about an hour-and-a-half for each !

 I found the Scotchbrite off eBay - 20 x 9inch pads for £11.

I found it easier to cut them into four smaller pads as its often that straight edge you need

 You get through them pretty fast but it brings the aluminium up to a nice sheen

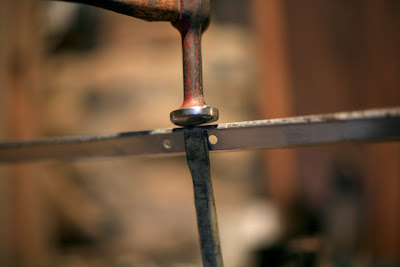

 Knocking the dings & dents out of the sections takes a bit of time & need a bit of ingenuity for the slimmer sections

but its worth it when it all goes back together...

... and you'll never do it once the glass is back in.

 A pleasing stack - ready to refit.

I used 4mm float glass - I looked into using a thin laminate but they all end up too heavy




 The Bathroom window still had its original glass

 ... so I decided to keep it.

 Cleaned up its like new
Vintage privacy !


The two vertically-hung front windows

 One done

Clean & polish

 Glass seal

 Central strut

 Done
